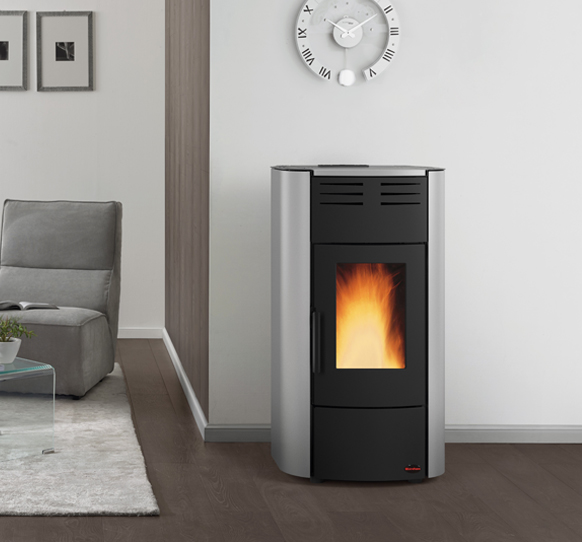

Central Heating Pellet Stove Extraflame RAFFAELLA IDRO H15 5.4-18.1 kW
Central Heating Pellet Stove Extraflame RAFFAELLA IDRO H15 5.4-18.1 kW - Image 2
Central Heating Pellet Stove Extraflame RAFFAELLA IDRO H15 5.4-18.1 kW - Image 3

Central Heating Pellet Stove Extraflame RAFFAELLA IDRO H15 5.4-18.1 kW

Product code: xx-140

4 550,00€

ESTO 3
ESTO järelmaks

The RAFFAELLA IDRO H15 pellet stove is suitable for heating up to 519 m3. The stove is available in three different colors: silver, red, and white.



  • Ability to adjust the speed of the first fan
  • Air-tight stove, where combustion air enters the stove only through the intake pipe, which can be led to the outside air environment
  • Combustion chamber made of thick steel
  • Cast iron fireproof door
  • Removable ash drawer
  • Ceramic ignition element
  • 3 bar safety valve
  • Integrated 8L expansion tank
  • Wide fire glass
  • Flue connection option: rear
  • Innovative adaptive system for regulating and balancing combustion air intake
  • IR Touch remote control
  • Black LCD screen
  • Optional Wi-Fi module (Gray label)





SKU: xx-140 Categories: , , , Tag:

Description

Pellet stoves are an innovative heating solution that automatically maintains a uniform temperature in the room. Stoves are divided into two types: air-heating stoves and stoves with a water jacket. Pellets are ignited automatically by an ignition element, and the only tasks for the user are to add pellets to the hopper and clean the stove occasionally.



The service staff and technicians of Toru-Jüri OÜ have received stove training in Italy, which allows us to offer excellent after-sales service and maintenance.



Central Heating Pellet Stove Extraflame RAFFAELLA IDRO H15 5.4-18.1 kW Kütteseadmed Sanitaartehnika Soojuspumbad Puidukatlad Korstnad Radiaatorid Boilerid Torud Tarvikud

RAFFAELLA-IDRO-H15-H18-kasutusjuhend-ENG.pdf

General
Manufacturer EXTRAFLAME
Weight (kg) 214
Pellet hopper (kg) 35
Heated area m³ 519
Measurements
Height (mm) 1176
Width (mm) 633
Depth (mm) 626
Smoke pipe diameter (mm) 100
Power/currents
Power (kW) 5,4-18,1
Voltage (V) 230
Benefits
Efficiency (%) 92,8 - 94,3
Volumes/pressures
Maximum operating pressure (bar) 3
Water volume (l) 18
