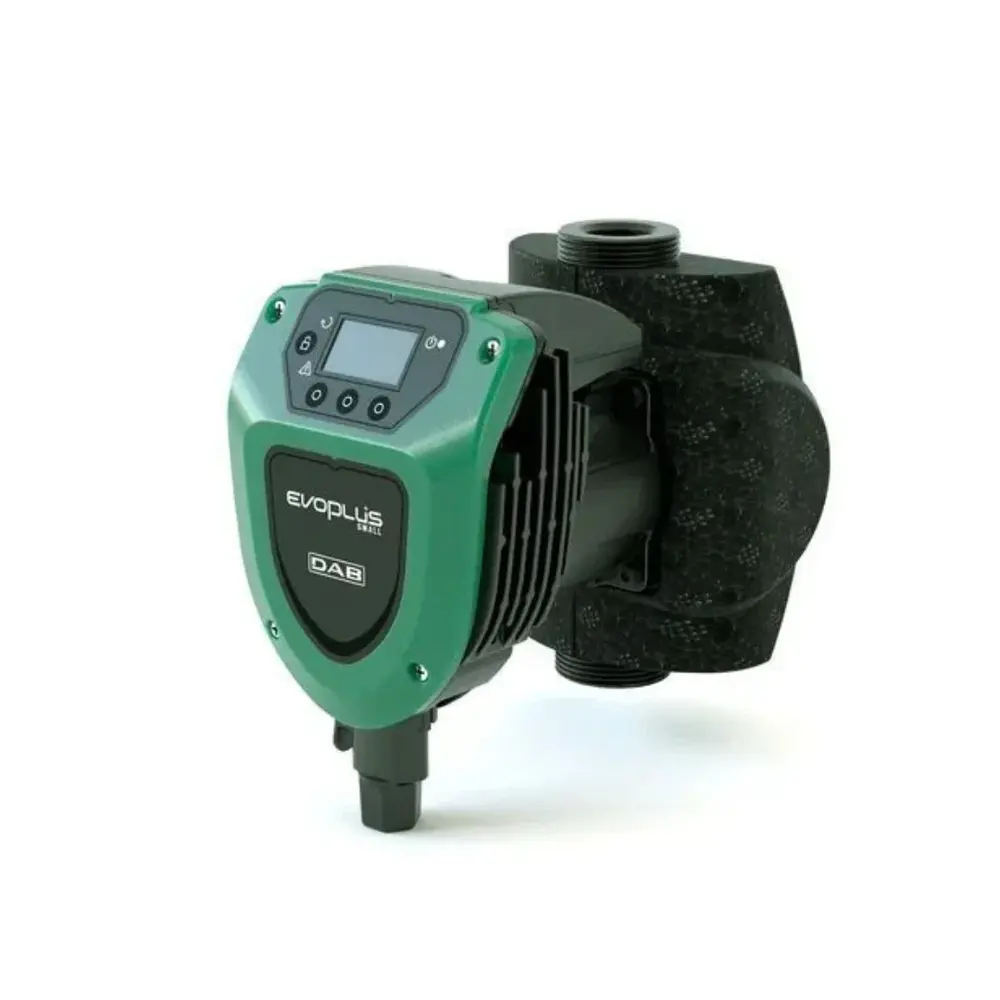

Circulation Pump Evoplus 60/180M DAB
Product code:
1505EVOP60
510,00€
Suitable for use with clean water and liquids that do not contain chemicals. Can be used on the heating, ventilation, and cooling side.
Operating modes: proportional pressure, constant pressure, constant speed.
- Synchronous motor and built-in inverter technology.
- Energy class: A
- Easy-to-configure control panel with LED display
You can find more technical data, drawings, etc. here.
| General | |
|---|---|
| Manufacturer | DAB |
| Productivity (m³/h) | 5.4 |
| Weight (kg) | 4.5 |
| Thread (") | 1 1/2 |
| Lifting height (m) | 6.1 |
| Measurements | |
|---|---|
| Width (mm) | 180 |
| Depth (mm) | 224 |
| Power/currents | |
|---|---|
| Voltage (V) | 230 |
| Volumes/pressures | |
|---|---|
| Maximum operating pressure (bar) | 16 |
| Max. liquid temperature (°C) | 110 |
