Pre-insulated corrugated stainless steel pipe CASAFLEX DUO

Pre-insulated corrugated stainless steel pipe CASAFLEX DUO

Price range: 110,00€ through 195,00€

ESTO 3
ESTO järelmaks

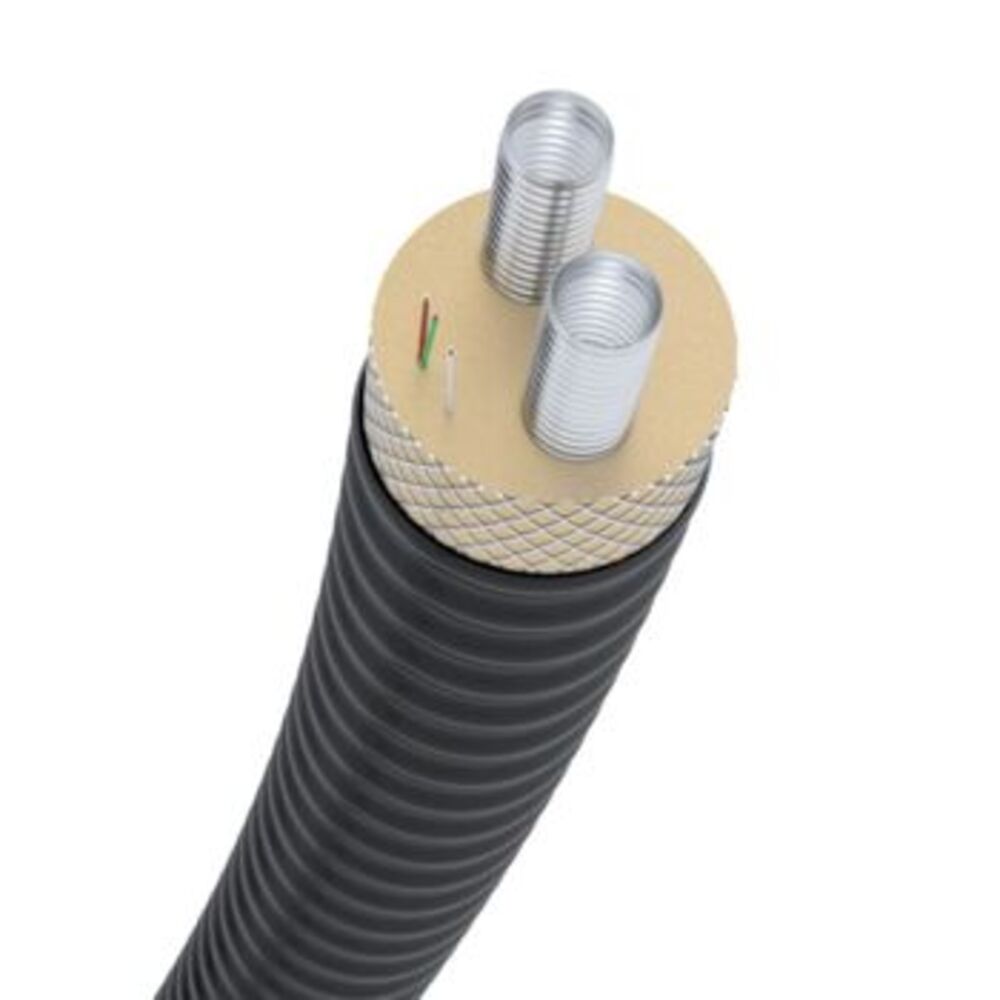

CASAFLEX DUO with two corrugated stainless steel inner pipes is a thermally insulated, flexible and continuous pipe system for high temperatures and operating pressure.



  • operating temperature: up to 160°C (fluctuating) (temporarily max 180°C)
  • operating pressure: 16/25 bar
  • dimensions: UNO DN 20-40
  • carrier pipe: stainless steel
  • insulation: polyisocyanurate (PIR)



You can find the introductory product sheet here.



Price per 1 m. Select the pipe type with the appropriate dimensions and get the current price!
Transportation costs will be added to the price!



SKU: N/A Categories: ,

Description





TÜÜP MM NOMINAAL LÄBIMÕÕT DN NOMINAAL LÄBIMÕÕT " PEX SISEMINE TORU MM MIN. PAINDERAADIUS M
22+22/11 20 ¾ 26,9 x 2,6 1,10
30+30/126 25 1 33,7 x 3,2 1,40
39+39/142 32 1 ¼ 42,4 x 3,2 1,50
48+48/162 40 1 ½ 48,3 x 3,2 1,80
