Pre-insulated flexible CALPEX PUR-KING QUADRIGA heating and domestic water pipe

Pre-insulated flexible CALPEX PUR-KING QUADRIGA heating and domestic water pipe

Price range: 64,00€ through 88,00€

ESTO 3
ESTO järelmaks

CALPEX PUR-KING is a highly energy-efficient pre-insulated flexible pipe with patented insulation material thermal conductivity of just λ 0.0199 W/mK.

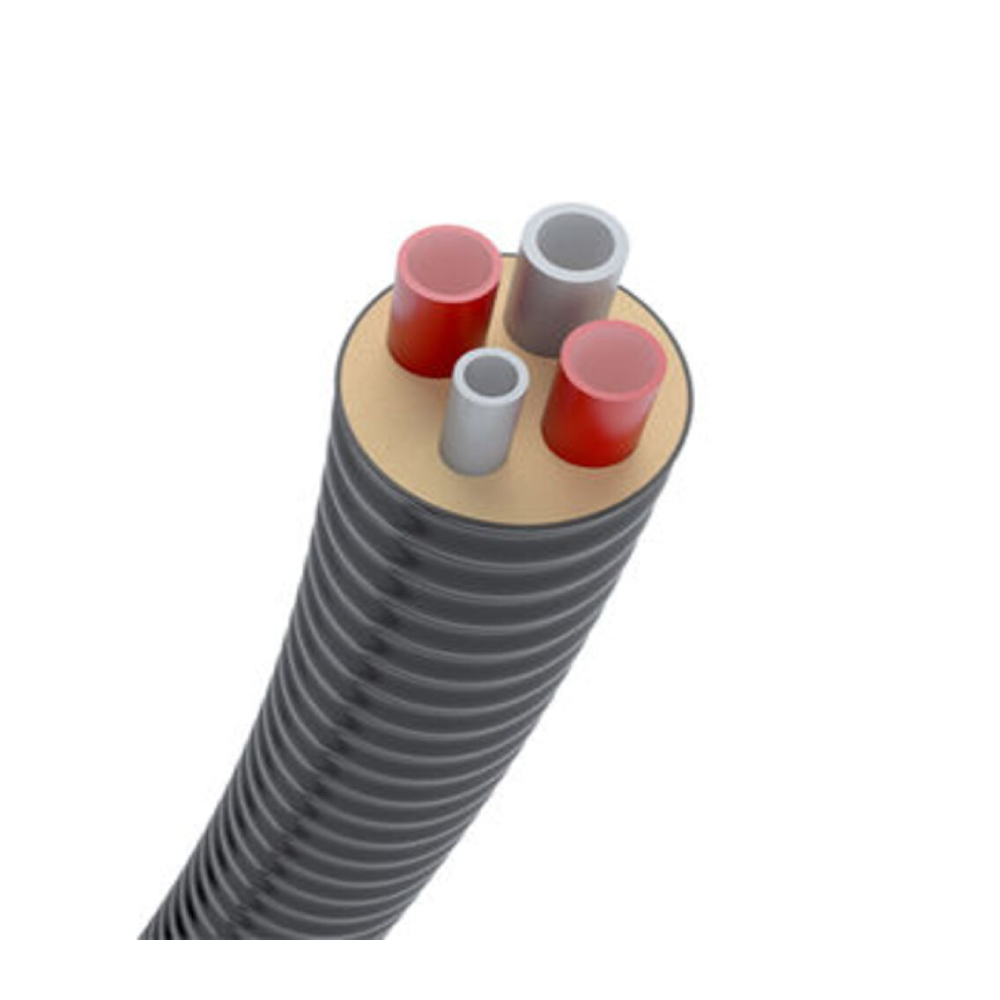

CALPEX QUADRIGA with four PEX-a carrier pipes is a flexible, continuous and self-compensating low-temperature pipe system that combines heating and sanitary applications:



  • pipe with four inner pipes (2 x sanitary / 2 x heating)
  • operating temperature: Max. 95°C (fluctuating)
  • working pressure: PN 10 and PN 6
  • dimensions: Heating DN 20–32 / sanitary DN 16–32

You can find the introductory product sheet here.



Price per 1 m. Select the pipe type with the suitable dimension and get the current price!
Transport costs will be added to the price!



SKU: N/A Categories: ,

Description

The flexible and self-compensating pipe system is suitable for use at low temperatures and in local and district heating networks. CALPEX pipe is an insulated underground pipe made of durable materials that are optimally designed for a long service life in soil – the carrier pipe is made of PEXa and has excellent thermal and mechanical properties. The outer jacket is made of LDPE-PE[A1]. The insulation material is polyurethane (PUR foam), with a thermal conductivity of only 0.0199 watts per meter and Kelvin – at an average measured temperature of 50°C. The factories are located in Germany and Switzerland.



TÜÜP MM NOMINAAL LÄBIMÕÕT DN NOMINAAL LÄBIMÕÕT " PEX SISEMINE TORU MM MIN. PAINDERAADIUS M KAAL KG/M
25+25/25+20/142 20| 20| 20| 16| ¾| ¾| ¾ | 5/8| 25 x 2,3| 25 x 2,3| 25 x 2,3| 20 x 2,8| 0,7 3,25
32+32/25+20/142 25| 25| 20| 16| 1| 1| ¾| 5/8| 32 x 2,9| 32 x 2,9| 25 x 3,5| 20 x 2,8| 0,7 3,39
32+32/32+20/142 25| 25| 25| 16| 1| 1| 1| 5/8| 32 x 2,9| 32 x 2,9| 32 x 4,4| 20 x 2,8| 0,7 3,41
40+40/40+25/162 32| 32| 32| 20| 1 ¼ | 1 ¼ | 1 ¼ | ¾ | 40 x 3,7| 40 x 3,7| 40 x 3,7| 25 x 3,5| 1,1 4,15
