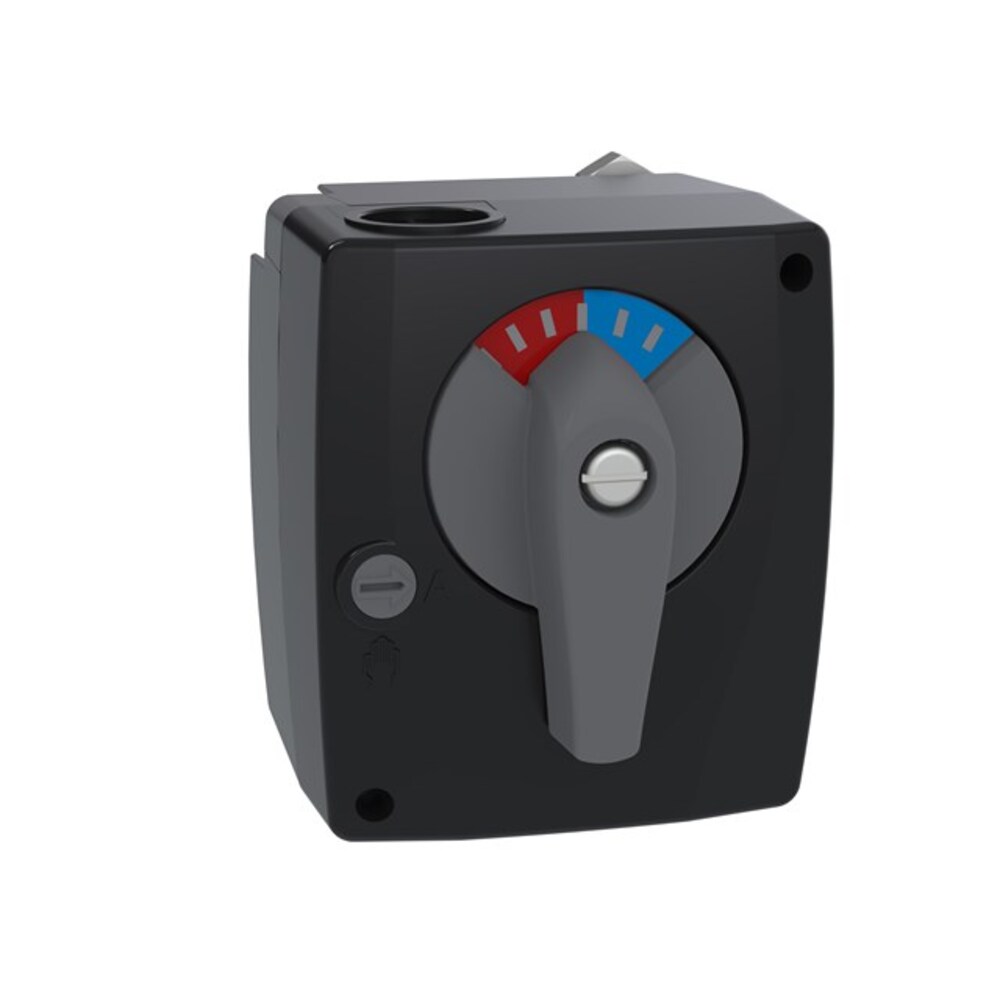

Three-way mixer actuator LK 950 24VAC 140 sec 5Nm LK Armatur

The LK 950 is suitable for most mixing valves. The actuator can be installed in any position except beneath the valve. The actuator is mounted directly onto the valve spindle with a screw.

An anti-rotation bolt keeps the actuator in place. If necessary, the actuator can be set to manual mode by turning the knob on the cover of the housing 90° clockwise to disengage the gears .

The actuator can now be positioned in any position by turning the handle on the front. The position is shown on the rotating scale.

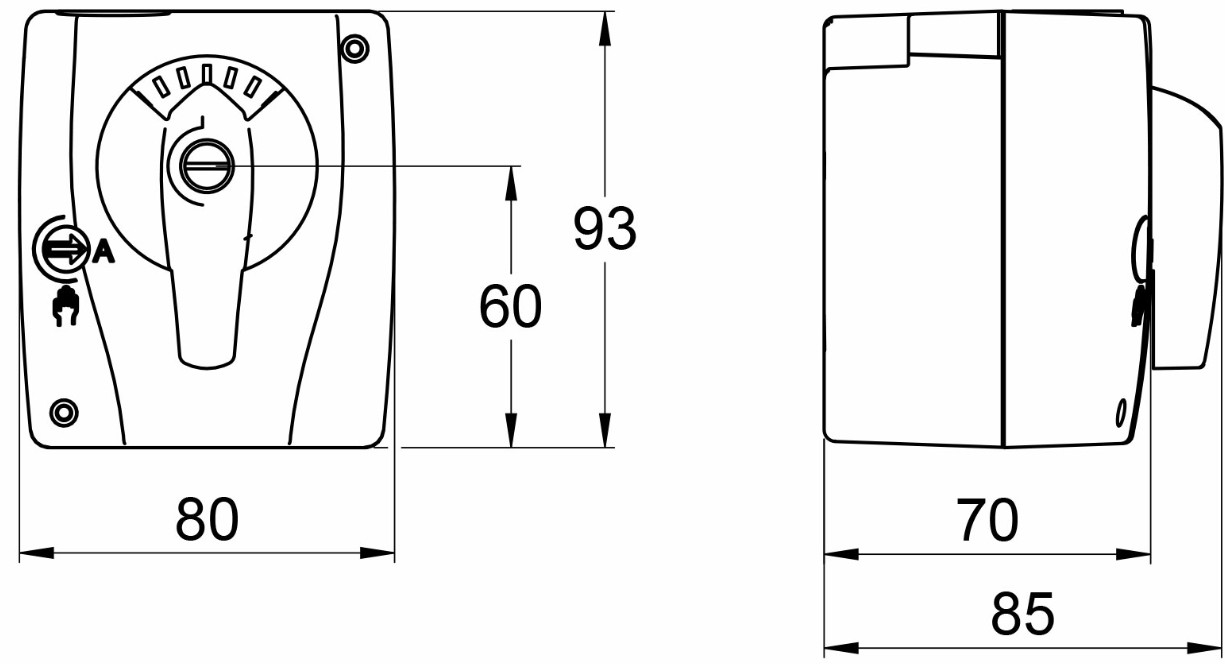

More technical data, drawings, etc. can be found here.
