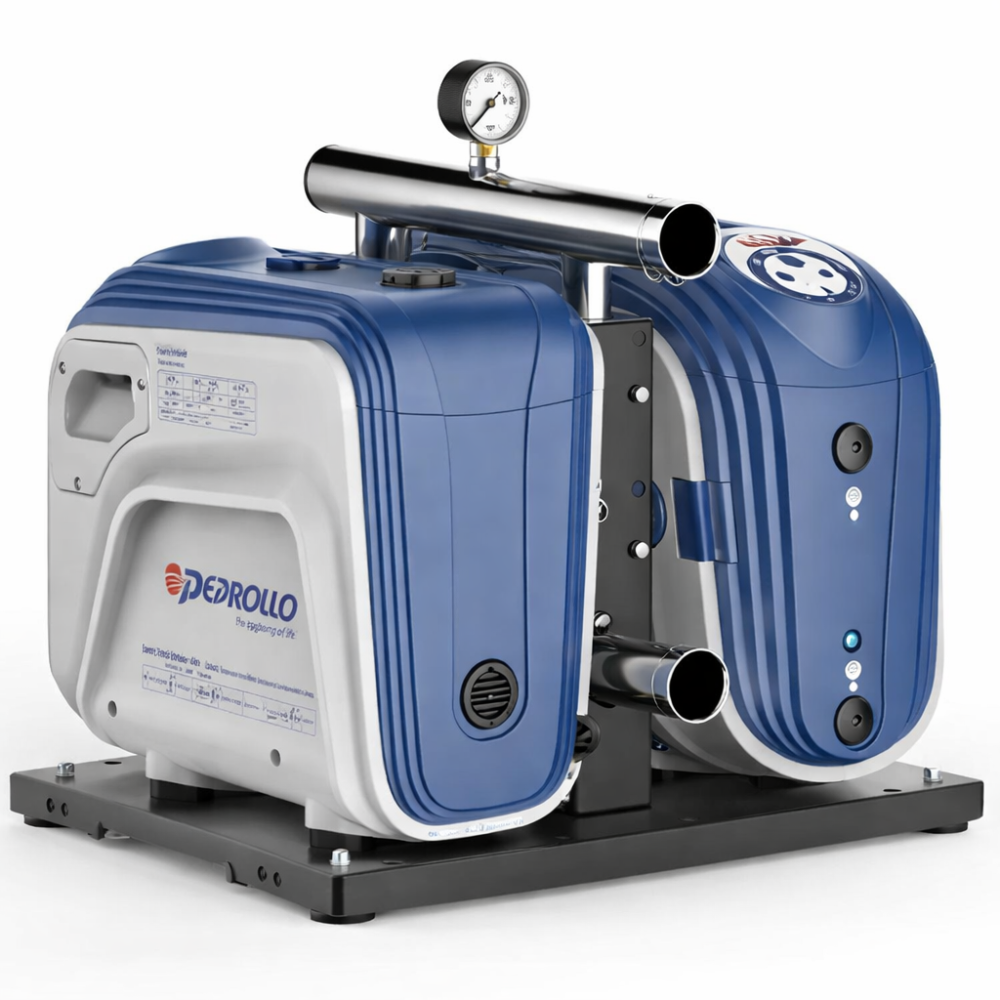

Dual DG-BLU 2+2 Inverter Water System PEDROLLO

Product code: 110DG22

2 125,00

ESTO 3
ESTO järelmaks

DUAL DG-BLU 2+2 is an inverter water system consisting of two DG-BLU 2 units, ideal for household use as well as smaller commercial and gardening water systems, ensuring high reliability and performance. It features an integrated inverter for maintaining constant pressure and automatic operating control.



  • Power supply: single-phase
  • Power: 2 x 0,55 kW
  • Capacity: up to 150 l/min
  • Maximum head: 45 m
  • Connections: 1½”
  • Suction depth: 8 m



For more technical data and drawings, see here.







SKU: 110DG22 Categories: , Tag:

Description

Pedrollo DUAL DG-BLU 2+2

Automatic inverter water system that includes an expansion tank, pressure and flow sensor, and non-return valve. The system is compact, quiet, and highly efficient.

The inverter’s sophisticated electronic control manages the entire system intelligently and intuitively:

  • maintains constant pressure in the system;
  • adjusts pump speed according to water consumption;
  • controls hydraulic and electrical operating parameters;
  • protects the electric pump from faults;
  • adjustment of input and output signals;
  • limits starting and operating currents for greater energy savings.
General
Manufacturer Pedrollo
Productivity (m³/h) 9
Weight (kg) 40
Thread (") 1 1/2
Lifting height (m) 45
Measurements
Height (mm) 504
Width (mm) 510
Depth (mm) 425
Power/currents
Power (kW) 2 x 0,55
Voltage (V) 230
Volumes/pressures
Max. liquid temperature (°C) 40
Operating pressure (bar) max 4,5
