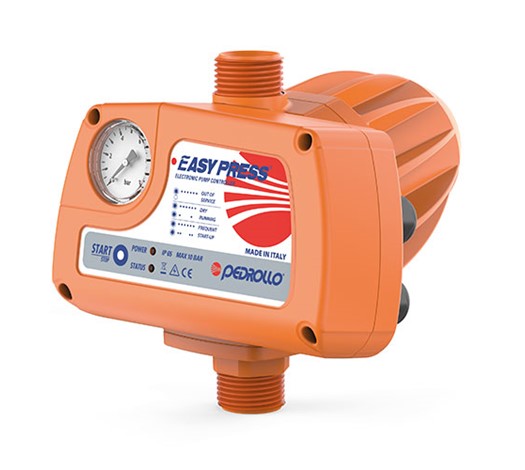

Electronic Pump Controller EasyPress (1.5 bar) Pedrollo

The EASYPRESS series consists of electronic devices designed to start single-phase pumps (when the tap is opened) and stop them (when the tap is closed).

A microprocessor protects the pump against dangerous operating conditions, such as dry running, and allows the pump to be restarted either automatically or manually. It also prevents the pump from starting too frequently when there are minor leaks in the installation.

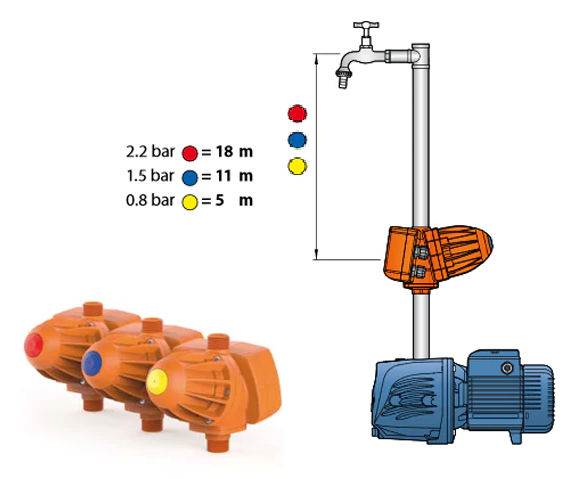

Three different models are available, each with a different start pressure, and they are easily identified by the colored cap on the back of the EASYPRESS (blue, yellow, red), which suits different heights:

EASYPRESS operating pressure is 1.5 bar (blue) – max lift height 11m
EASYPRESS 1 operating pressure is 0.8 bar (yellow) – max lift height 5m
EASYPRESS 2 operating pressure is 2.2 bar (red) – max lift height 18m

More technical data can be found here.
