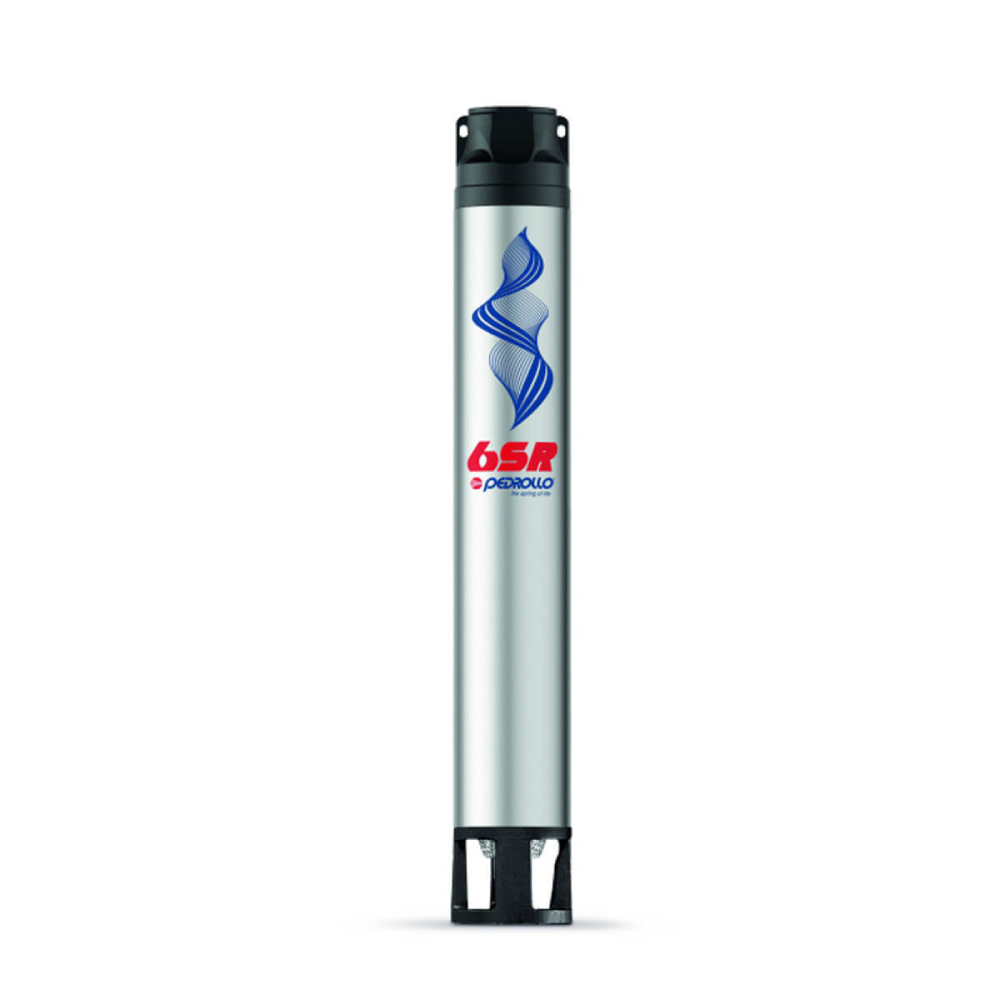

Pedrollo 6SR 18/9 7.5HP 7.5kW Borehole Pump Head (27m³/122m)
Product code:
1160SR18/9
789,00€
High-quality 3-phase 6” borehole pump head from the Italian manufacturer Pedrollo, designed for industrial users, with a minimum borehole diameter of at least 148mm.
- Equipped with a stainless steel AISI 304 check valve
- Impeller and diffuser material: Noryl – a strong and durable technopolymer coated with a special sand-resistant elastomer
- Maximum sand content 100g/m3
More technical data and charts can be found here.
| General | |
|---|---|
| Manufacturer | Pedrollo |
| Productivity (m³/h) | 27 |
| Cable length (m) | 4 |
| Weight (kg) | 22 |
| Thread (") | 3 |
| Lifting height (m) | 122 |
| Measurements | |
|---|---|
| Height (mm) | 758 |
| Diameter (mm) | 148 |
| Power/currents | |
|---|---|
| Power (kW) | 7,5 |
| Voltage (V) | 400 |
| Volumes/pressures | |
|---|---|
| Maximum operating pressure (bar) | 12,2 |
| Max. liquid temperature (°C) | 35 |
