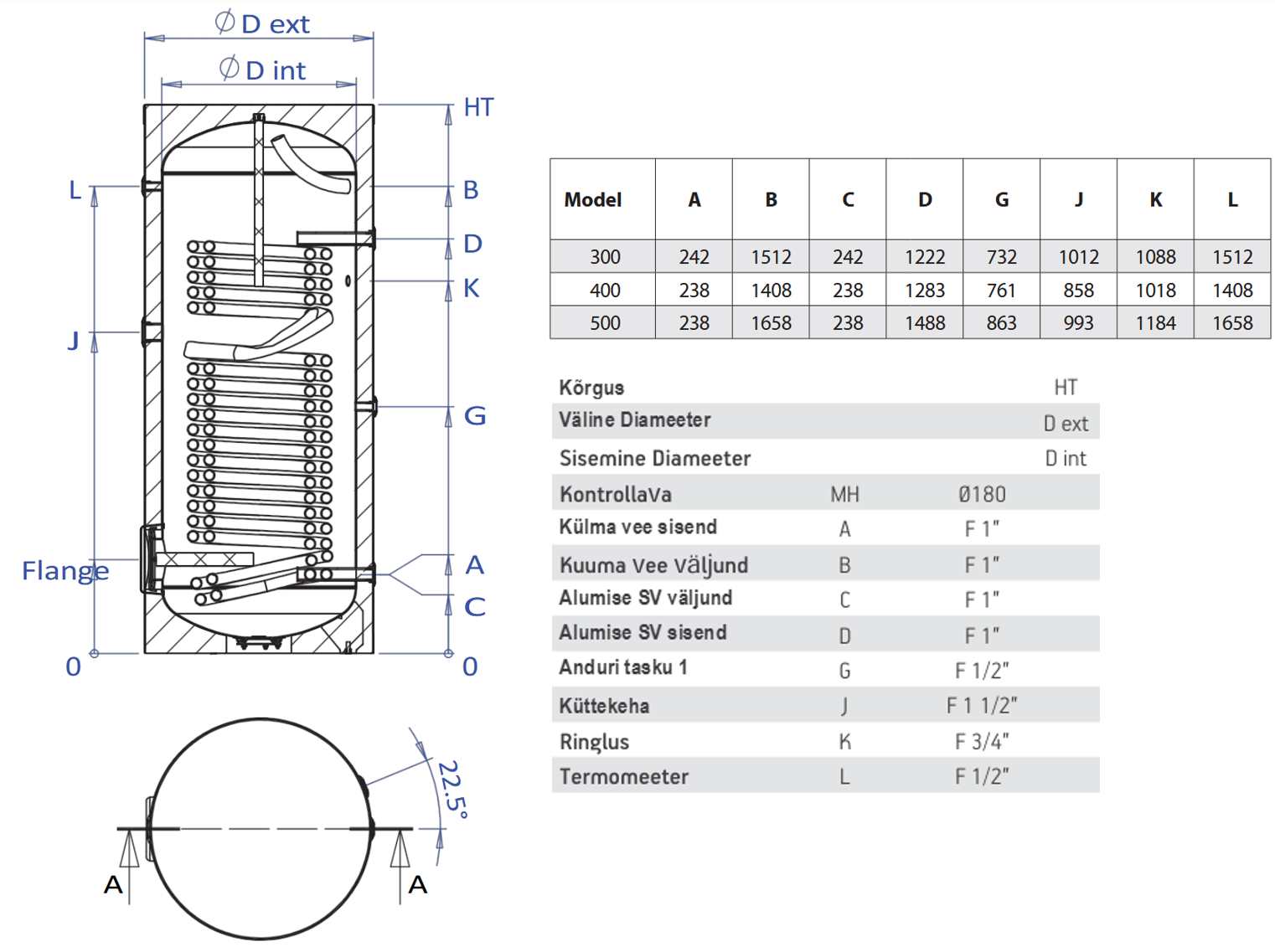

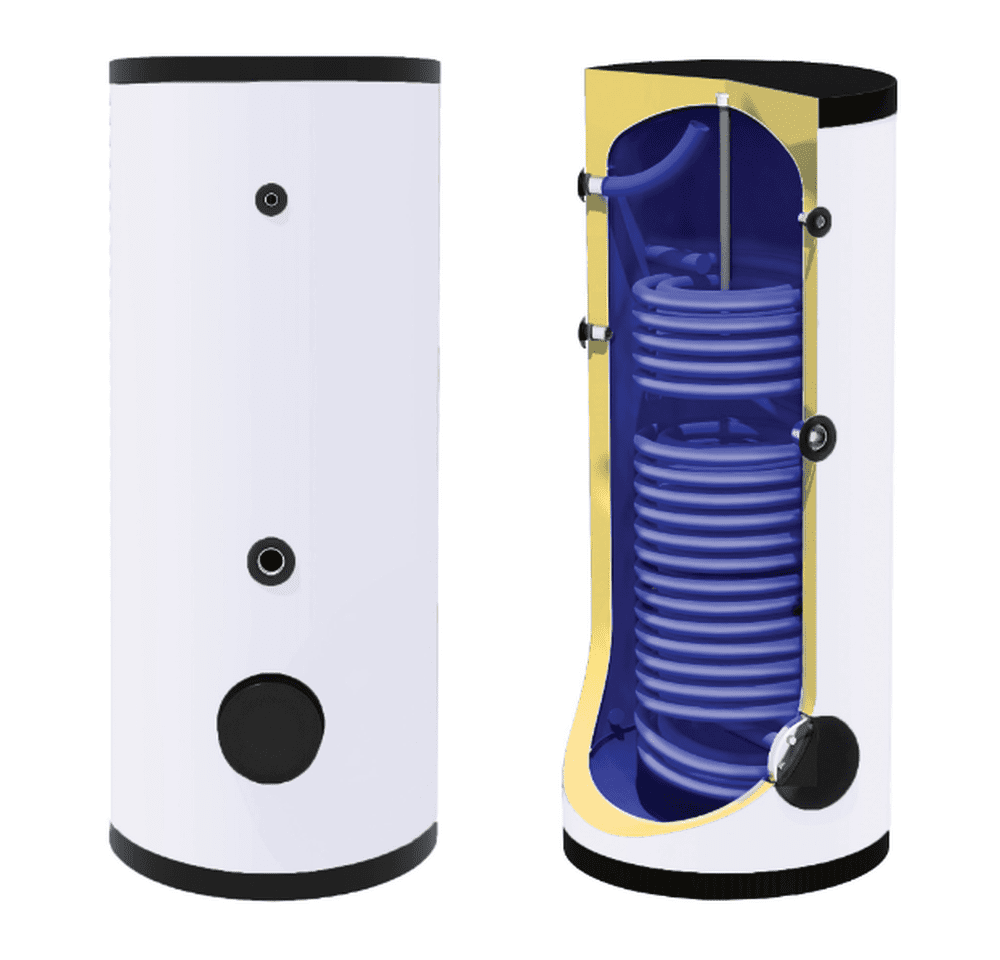

SBB 1S PAC 500 Heat Pump Boiler

The SBB 1S PAC 500 heat pump boiler with one heat exchanger can be combined with heat pumps.

Compatible with the TPK 150 2.2 kW heating element and Cordivari heating elements 2/3/4/5 kW, as well as Cordivari flange with 1 1/2″ opening (Bolly 150-500).

• Heat exchanger capacity: 6.0 m2/29 L
• ErP energy class: C
• Insulation: 50 mm
• Maximum boiler operating pressure: 10 bar
• Maximum heating element length: 480 mm
• Minimum domestic hot water expansion vessel size in the system: 50 L
• Magnesium anode
