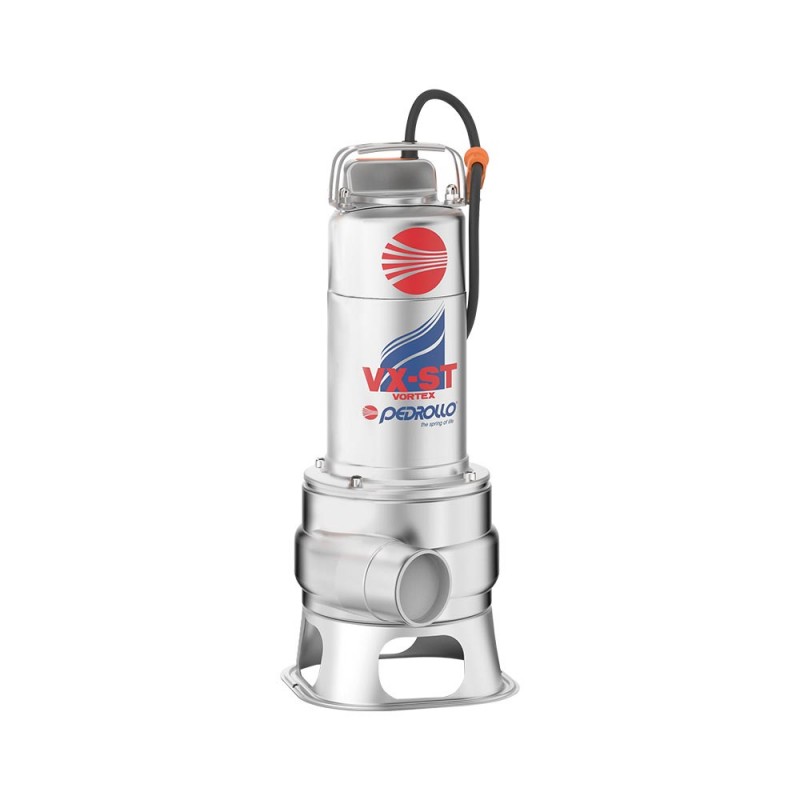

VX 15/50-ST 400V Pedrollo Submersible Drainage Pump
Product code:
114VX1550
471,00€
The VX 15/50-ST drainage pump is designed for pumping wastewater containing particles up to a maximum size of 50 mm.
- Minimum immersion depth for continuous operation: 330 mm
- Impeller material: stainless steel AISI 304 VORTEX
- Designed for installation in wastewater collection tanks, septic tanks, for draining surface water from basements, and also for underground parking lots, car washes, etc. Minimum tank size 500x500mm
- For hose connection, we recommend the 50 x 2″ vk hose nipple
- In addition, the VX-BC/50-ST lift kit can also be installed
More technical data, drawings, etc. can be found here.
|
104,30€
|
||
|
6,70€
|
||
|
4,70€
|
||
|
Price range: 2,20€ through 47,10€
|
Select options |
| General | |
|---|---|
| Manufacturer | Pedrollo |
| Productivity (m³/h) | 39 |
| Cable length (m) | 10 |
| Weight (kg) | 14,1 |
| Thread (") | 2 |
| Lifting height (m) | 13,5 |
| Measurements | |
|---|---|
| Height (mm) | 483 |
| Width (mm) | 198 |
| Power/currents | |
|---|---|
| Power (kW) | 1,1 |
| Protection (A) | 2,7 |
| Voltage (V) | 400 |
| Volumes/pressures | |
|---|---|
| Max. liquid temperature (°C) | max 40 |
