Description
Pedrollo is a high-quality Italian manufacturer that has been producing water pumps for decades and is known for its high quality and long service life.

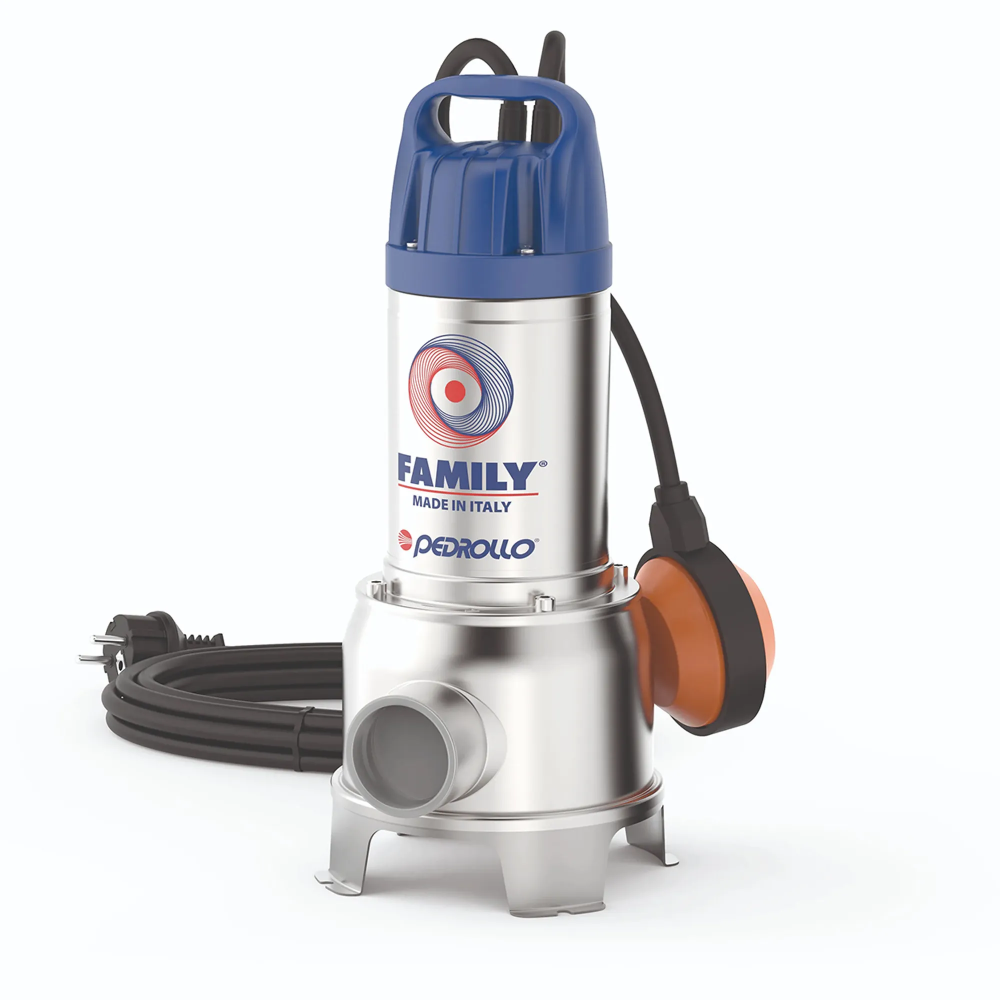

Wastewater Drainage Pump FAMILY Pedrollo
Product code:
114FAMILY
253,00€
The FAMILY drainage pump is designed for pumping wastewater with particles up to a maximum size of 30 mm.
- Pump is equipped with a float switch
- Plastic float holder
- Minimum immersion depth during continuous operation: 160 mm
- Cable length: 5 m
- Vortex impeller AISI 304
- Stainless steel casing AISI 304
- Includes 50 mm elbow hose connector
- Designed for installation in wastewater collection tanks, septic tanks and toilet pits.
- Minimum tank dimensions 450×450 mm
More technical data and drawings can be found here.
|
6,70€
|
||
|
4,70€
|
| General | |
|---|---|
| Manufacturer | Pedrollo |
| Productivity (m³/h) | 15 |
| Cable length (m) | 5 |
| Immersion depth (m) | 5 |
| Weight (kg) | 7 |
| Thread (") | voolikuotsikuta 1 1/2 sk (põlv-voolikuotsikuga 50mm) |
| Lifting height (m) | 10 |
| Measurements | |
|---|---|
| Height (mm) | 333 |
| Width (mm) | 163 |
| Power/currents | |
|---|---|
| Power (kW) | 0,50 |
| Protection (A) | 4 |
| Voltage (V) | 230 |
| Volumes/pressures | |
|---|---|
| Max. liquid temperature (°C) | 40 |
