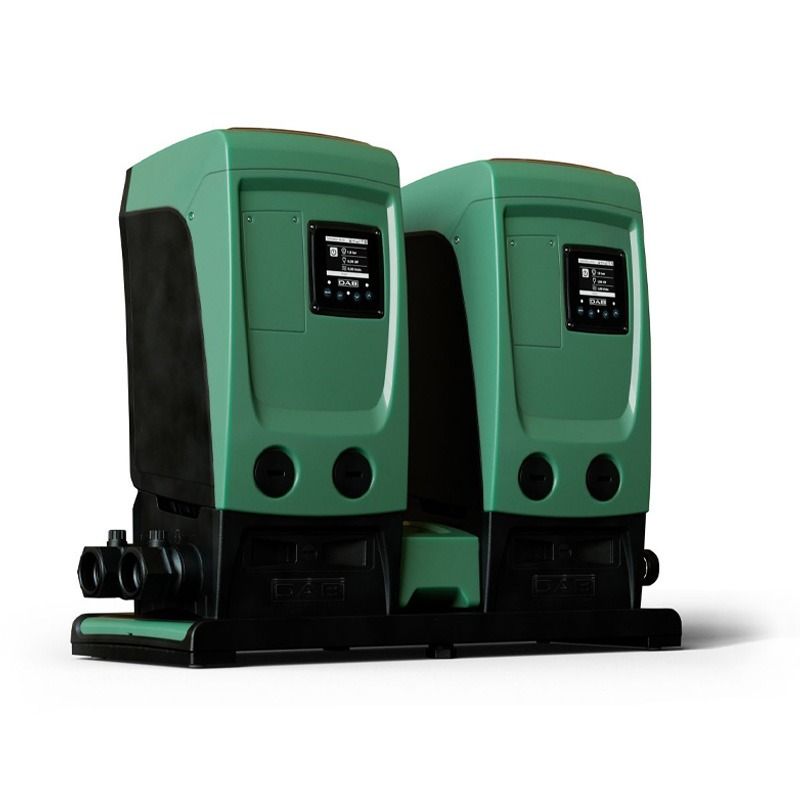

Water system with inverter 2 ESYBOX MINI with ESYTWIN MINI base DAB

Product code: 60218781

1 877,00

ESTO 3
ESTO järelmaks

DAB 2 ESYBOX MINI pump set with ESYTWIN MINI is an advanced water pressure solution consisting of two ESYBOX MINI units connected to an ESYTWIN MINI base.



Integrated inverter technology adjusts the speed of the motors in the system according to water demand, ensuring constant pressure and optimizing energy consumption. This unit is ideal for households and smaller commercial and gardening water systems, ensuring high reliability and performance.



  • 2 ESYBOX MINI pressure pumps with inverter
  • 1 ESYTWIN MINI quick-connect base
  • Flow rate up to 160 l/min
  • Head up to 55 m
  • 2 x 0,85 kW motors
  • Discharge port 1 1/4″
  • Suction depth: up to 8 m
  • Operating pressure: max 5 bar
  • Dimensions (W x D x H): 730 x 268 x 604 mm
  • Weight: 37 kg set
  • Expansion tank: 2 liters per unit
  • Remote control: via DAB DConnect app (optional interface)



More technical data can be found here.







SKU: 60218781 Categories: , Tag:

Description

Main advantages of the DAB 2 ESYBOX MINI pumping unit and ESYTWIN MINI

One of the distinguishing features of this system is its quiet operation, making it ideal for installation in noise-sensitive environments such as residential buildings and offices. Energy efficiency is another strength: thanks to inverter technology, the system automatically adjusts power according to demand, resulting in energy savings of up to 1000 euros per year.

Applications of the DAB 2 ESYBOX MINI pump group with ESYTWIN MINI

The DAB 2 ESYBOX MINI pump group with ESYTWIN MINI is ideal for many applications, including:

  • Domestic pressure boosting: ideal for apartment buildings up to 3 stories
  • Irrigation: excellent for gardens, vegetable gardens and rainwater collection tanks.
  • Wells and water from natural sources: thanks to self-priming pumps, the system can draw water from wells up to 8 meters deep.

Ease of installation and maintenance

This pressure system is designed for easy installation even in small spaces thanks to its compact size. Installation is quick and simple thanks to the ESYTWIN MINI base, which allows the components to be assembled without problems. In addition, remote management of the system via the DAB DConnect app (optional interface) enables comprehensive management and continuous monitoring of operation.

General
Manufacturer DAB
Productivity (m³/h) 8,4
Weight (kg) 37
Thread (") 1 1/4
Lifting height (m) 55
Measurements
Height (mm) 604
Width (mm) 730
Depth (mm) 268
Power/currents
Power (kW) 2x0,85
Voltage (V) 230
Volumes/pressures
Max. liquid temperature (°C) 40
Operating pressure (bar) max 5
